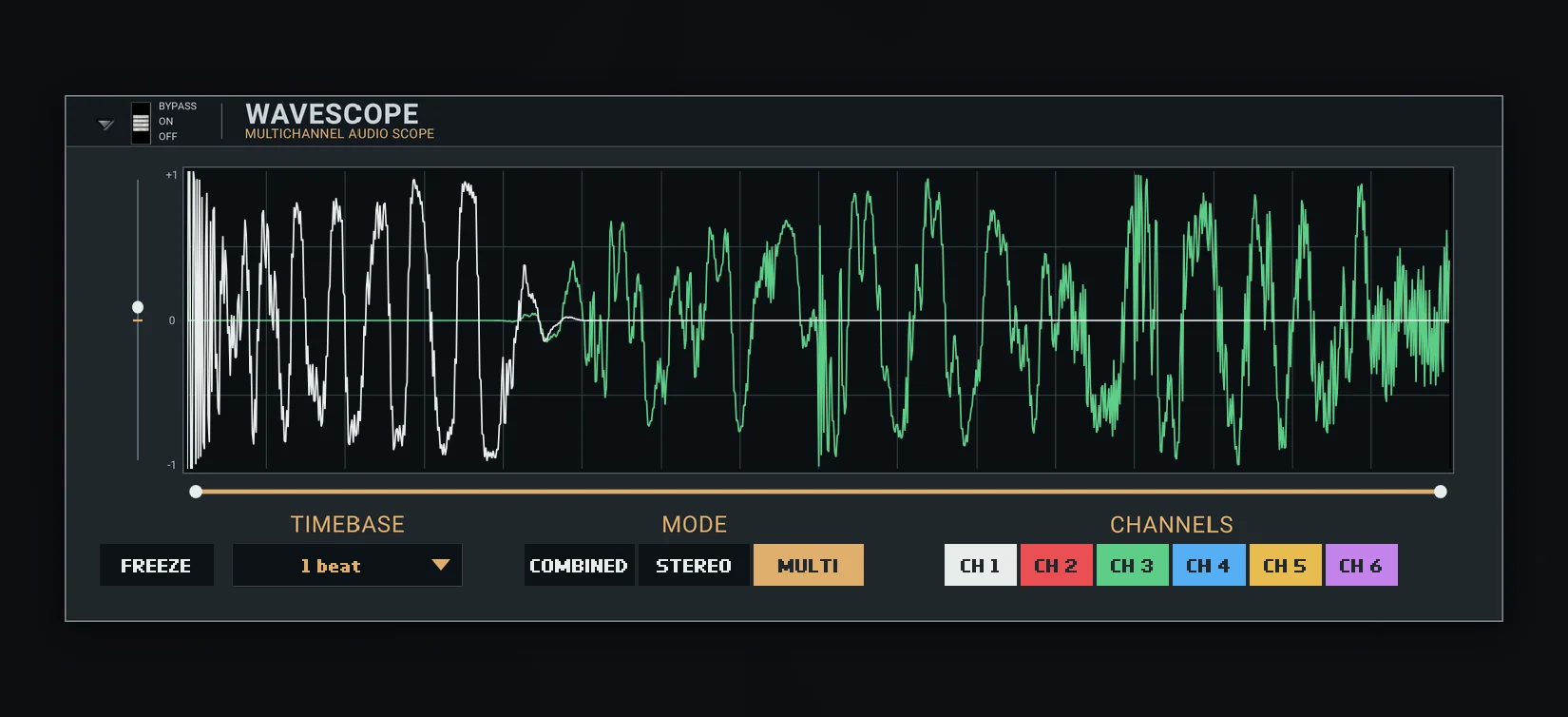

What is WaveScope?

WaveScope is a multichannel waveform monitor that lets you see how your audio behaves over time. Inspect transients, compare the timing of layered sounds, and examine phase relationships between signals.

View your stereo signal as a combined waveform, separate the left and right channels, or compare up to six color-coded mono inputs. Connect individual sounds, such as a kick and bass, to the optional inputs to see how their waveforms line up.

Sync the display to beats and bars or use Free Run for continuous monitoring. Freeze the waveform, adjust its display gain, and zoom in for a closer look. The previous sweep stays visible until the next one replaces it, keeping your audio easy to follow.

Reason 14 or later is required

Specifications

Display modes: Combined, Stereo and Multi.
Channels: Up to six simultaneous, color-coded mono waveforms.
Timebase: Free Run (2 seconds) or synced to beats or bars.
Display gain: −24 to +24 dB.
Zoom: 1–16x with horizontal position adjustment.
Freeze: Holds the waveform while audio continues passing through.
Channel visibility: Individual show/hide buttons in Stereo and Multi modes.
Connections: Stereo input/output and four mono monitoring inputs.
Format: 4U Reason Rack Extension, listed under Utilities.

Reason 14 or later is required
