Red Rock Sound RE180 is a gain reduction 10-in/30-out CV splitter, specifically developed for use with the RE60 and RE302. With these three devices, you can build a dynamic EQ, or solve the frequency conflicts different samples or instruments.

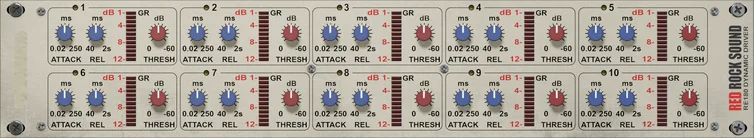

FRONT PANEL FUNCTIONS:
Each of the 10 channels has:
INPUT LED The yellow LED lights up when in the channel has a signal.
ATTACK sets the time taken for compression to commence after the threshold is exceeded, from 0.02 milliseconds (20 microseconds) to 250 milliseconds.
RELEASE determines the time taken for the gain to return to normal after the signal drops below the
threshold level, adjustable from 40 milliseconds to 2 seconds.
GAIN REDUCTION light bar graph meter indicates in decibels by how
much the signal is compressed at any instant.
THRESHOLD determines the level above which gain reduction will take place, variable from 0dB down to -60dB.
BACK PANEL FUNCTIONS:
Each of the 10 channels has one audio input and three CV outputs .
UPDATE HISTORY
New in 1.0.2:
- attack/release times bug fixed
