Overview

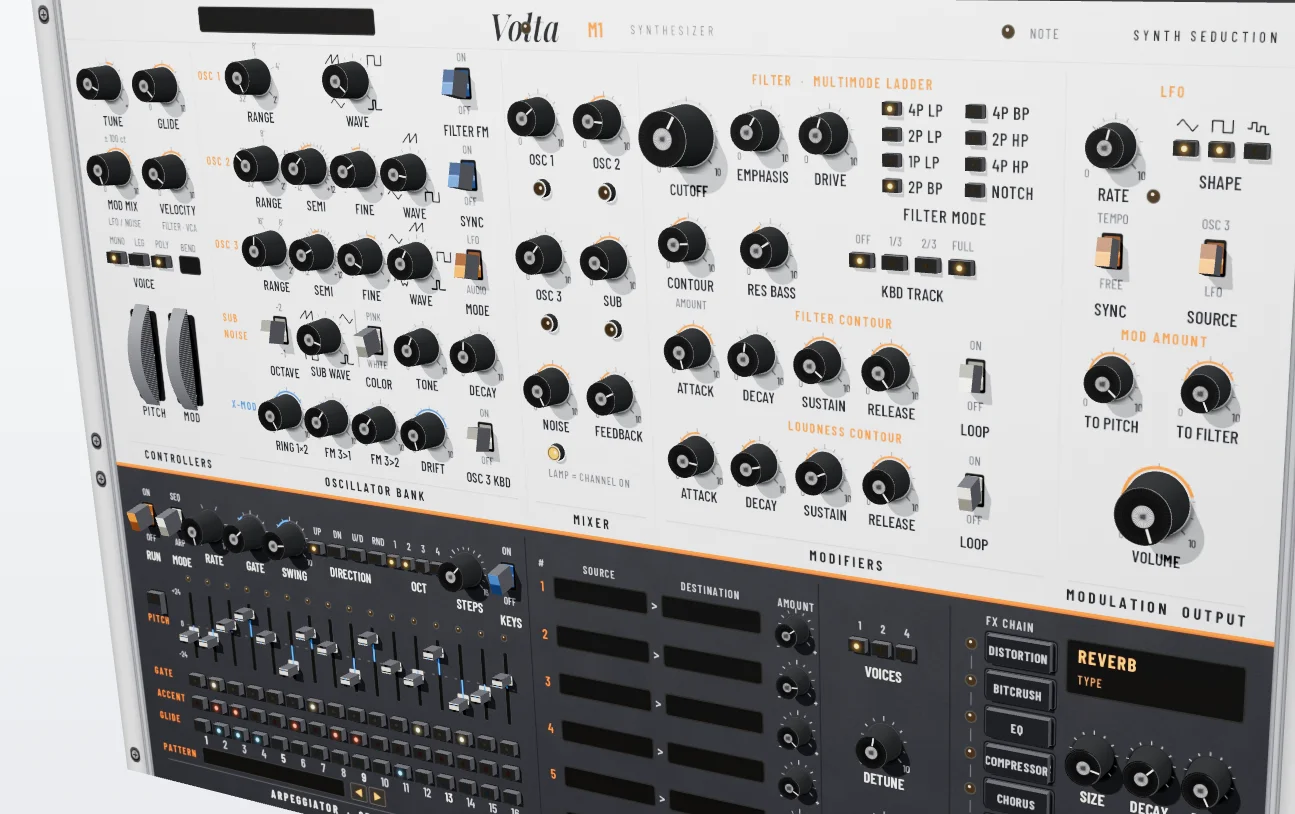

Volta M1 is a polyphonic subtractive synthesizer inspired by the classic three-oscillator ladder-filter synths of the ’70s. Three analog-style oscillators feed a self-oscillating ladder filter for fat basses, singing leads, evolving pads and driving sequences. Modern tools – a modulation matrix, an arpeggiator, a 16-step sequencer and a built-in effects chain – take it well beyond the vintage originals.
Key features
• Three analog-style oscillators with a sub oscillator and white/pink noise
• Zero-delay-feedback ladder filter with 8 modes, Drive and Res Bass
• Hard sync, filter FM and X-MOD (ring mod, FM 3>1, FM 3>2), plus a feedback path
• Oscillator 3 doubles as an LFO, with keyboard follow
• Two looping ADSR envelopes and a tempo-syncable LFO
• 6-slot modulation matrix with 14 sources and 18 destinations
• Unison with 1, 2 or 4 voices, with Detune and Spread
• Arpeggiator and 16-step sequencer with per-step pitch, gate, accent and glide
• Nine effects in a reorderable chain: Distortion, Bitcrusher, EQ, Compressor, Chorus, Phaser, Delay, Reverb and Limiter
• 11 CV inputs and 5 CV outputs
• 454 factory patches in 11 folders, plus 10 showcase patches
How to use it
Turn the WAVE knobs of Oscillators 1 and 2 from left to right to morph smoothly between waveforms, including triangle, saw and square. Detune Oscillator 2 slightly with FINE for a wider, beating sound.
Blend the oscillators, sub and noise in the mixer, then sculpt the sound with the ladder filter – Cutoff, Emphasis and Drive do most of the work.
The X-MOD row adds metallic and bell-like colors: FM 3>1 and FM 3>2 let Oscillator 3 frequency-modulate the others, RING 1×2 ring-modulates Oscillators 1 and 2, and Filter FM lets Oscillator 1 modulate the cutoff at audio rate for a gritty, growling edge.
Use the looping envelopes, the LFO and MOD MIX, or route any of the 14 sources in the 6-slot modulation matrix.
Add character with the built-in effects chain.
Want patterns? Switch on the arpeggiator or the 16-step sequencer.
What’s included
• Volta M1 instrument device
• 454 factory patches in 11 folders, plus 10 showcase patches
• Operation manual (PDF)
Specifications
• Oscillators: 3 + sub oscillator + white/pink noise
• Filter: ladder, 8 modes (4P/2P/1P LP, 2P/4P BP, 2P/4P HP, Notch)
• Envelopes: 2 × ADSR with Loop
• Modulation matrix: 6 slots, 14 sources, 18 destinations
• Effects: 9, reorderable
• CV: 11 inputs, 5 outputs
Requirements
Reason 14 or later, or a Reason+ subscription.
Version history
1.0.0 – Initial release.
